Support Solution Examples

Support problem: Given a bilinear support, generate a spline surface as close to the support as possible staying strictly above the support.

The user can specify: degree and smoothness of the spline.

In the examples below, the support and its control points are in green and the solution surface and its control points are in red.

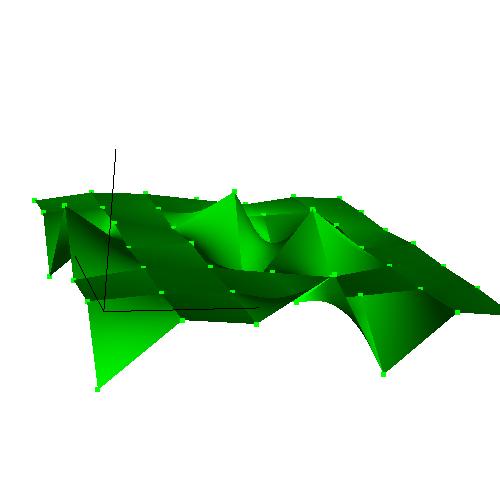

Semi-random bilinear support

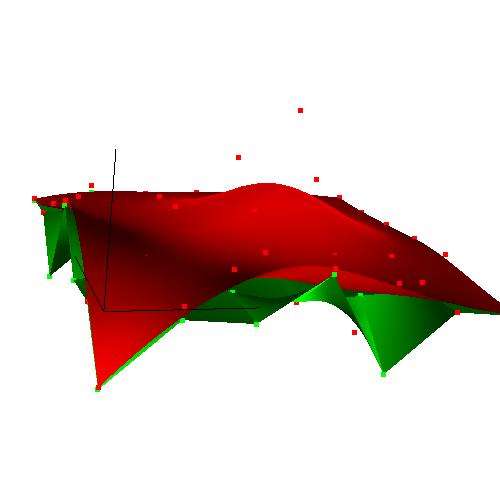

Degree 3 Bezier surface spline solution

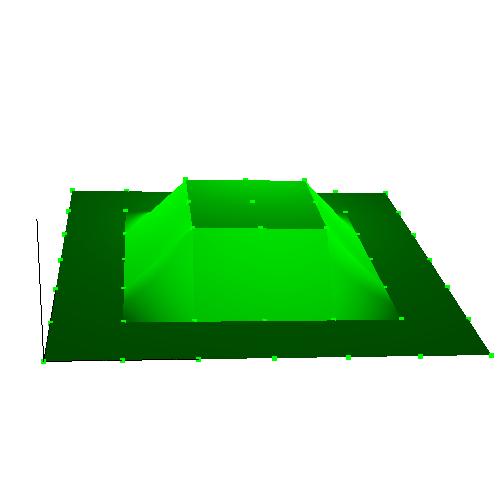

2-D bilinear hat

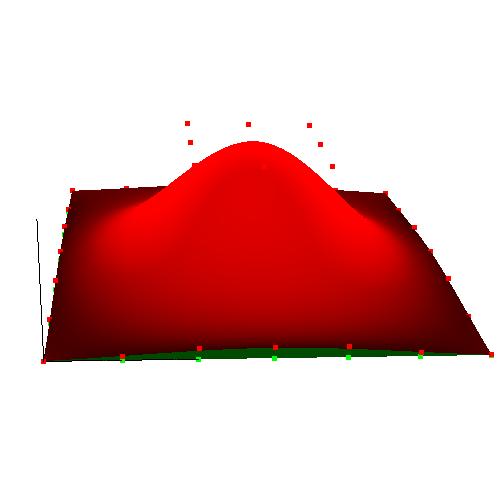

Degree 3 Bezier surface spline solution

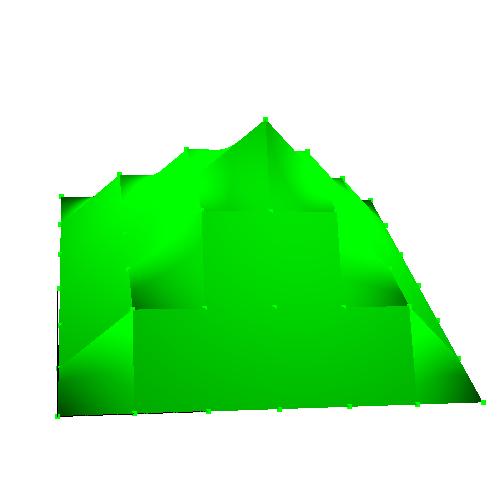

2-D bilinear pyramid

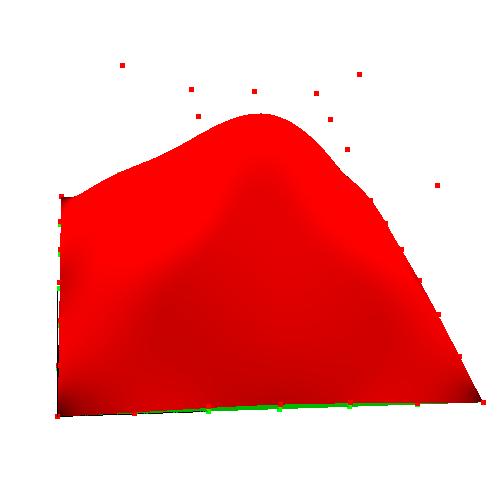

Degree 3 Bezier surface spline solution
